商品の詳細:
お支払配送条件:
|
| 重さ: | ≤50kg | 風向精度: | 1° |
|---|---|---|---|
| 測定原則: | 脈打ったレーザー凝集性のドップラー | 測定の層: | 12か24 |
| 保護クラス: | IP68 | 風速範囲: | 0～75M/s |
| サイズ（ハンドル含む）: | 554 × 430 × 581 mm3 | 力: | ≤60W |
| ハイライト: | IP68 Doppler wind lidar,1 Hz sampling wind lidar,laser wind speed measurement sensor |
||

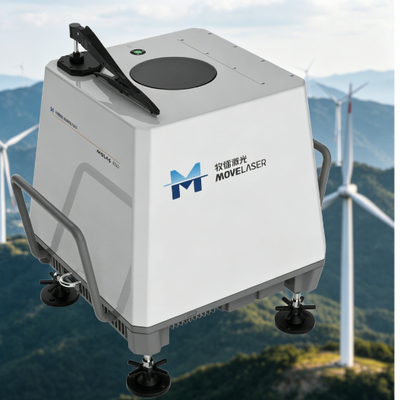

The Molas B300 utilizes the Doppler frequency shift principle combined with DBS scanning vector synthesis technology to accurately measure wind speed and direction. It is capable of performing these measurements at various altitudes, specifically from 30 meters up to 350 meters above the lidar device.
This series is composed of four essential core components. These include a fiber laser lidar transmitter, a laser transceiver system, a high-speed data acquisition unit, and sophisticated data processing software with high precision. The integration of these modules ensures seamless compatibility and effective synchronization across the system.
Moreover, the design emphasizes the security of data information throughout the measurement and processing stages. Thanks to the advanced integration and technology employed, the Molas B300 achieves performance standards that are recognized as internationally leading in the field.
The Molas B300 utilizes advanced non-contact measurement technology, delivering a user-friendly and rapid operation experience combined with top-tier industry performance. It offers precise wind speed measurement with an accuracy of 0.1 m/s and wind direction accuracy up to 1°, ensuring dependable data for wind resource evaluation.
Boasting a broad measurement span from 20 to 350 meters along with the capability to support 12 or 24 customizable measurement layers, the Molas B300 is versatile enough to meet diverse wind monitoring requirements. Its compact and lightweight design eliminates the need for land acquisition or civil engineering works, allowing flexible installation in challenging terrains while reducing both labor and costs.
Engineered to endure all weather conditions, the Molas B300 guarantees consistent performance in severe outdoor environments. Maintenance processes are straightforward and swift, posing no safety hazards during operation. Additionally, data transmission is securely managed to prevent economic and policy-related risks stemming from data breaches.
Featuring wireless configuration and data transmission capabilities, the Molas B300 is simple to operate and quick to set up, substantially cutting down project timelines and expenses. The Molas B300 is purpose-built for precision wind measurement, facilitating efficient and effective project implementation.
| Wind Direction Accuracy | 1° |
| Wind Speed Accuracy | 0.1 M/s |
| Power | ≤60W |
| Distance (Ordinary Type) | 30~350m |
| Measurement Layer | 12 Or 24 |
| Temperature Range | -40°C ~ +60°C |
| Wind Direction Range | 0~360° |
| Measurement Principle | Pulsed Laser Coherent Doppler |
| Powered By | 24V ±5% DC, 100~230V AC |
| Size (with handle) | 554 * 430 * 581 Mm³ |
This Third-party certified wind lidar is a Ground-based wind lidar solution offering precise wind measurements with high accuracy and reliable performance.
The MOLAS B300, a cutting-edge onshore wind remote sensing device, is designed to provide precise and reliable wind speed measurements in a wide range of environments. Manufactured in China, this third-party certified wind lidar system utilizes the advanced Pulsed Laser Coherent Doppler measurement principle to deliver exceptional wind speed accuracy of 0.1 M/s. Its robust temperature range from -40°C to +60°C ensures optimal performance even in extreme weather conditions, making it ideal for diverse application occasions.
One of the primary scenarios where the MOLAS B300 excels is in wind energy assessment and site evaluation for wind farms. As a ground-based wind lidar, it enables accurate and continuous monitoring of wind speed and direction, essential for optimizing turbine placement and maximizing energy output. The fast delivery time and minimum order quantity of just one set make it convenient for project developers and researchers to quickly deploy the system on-site.
Additionally, the MOLAS B300 proves invaluable in meteorological research and environmental monitoring. Its 1 Hz sampling rate allows for real-time data acquisition, facilitating detailed analysis of wind patterns and atmospheric conditions. The device’s compatibility with both 24V ±5% DC and 100~230V AC power supplies ensures flexible installation options in remote or urban locations.
In industrial and construction settings, the MOLAS B300 serves as a reliable tool for monitoring wind conditions that can affect safety and operational efficiency. Packaged securely in a flight case, it is portable and easy to transport to various locations, supporting on-demand wind speed assessments. Moreover, its certification by third-party organizations assures users of its measurement accuracy and system reliability.
Overall, the MOLAS B300 by MOLAS is an indispensable ground-based wind lidar solution for applications ranging from wind resource assessment and meteorological studies to industrial safety monitoring. Its advanced technology, durability, and flexible deployment options make it a top choice for professionals seeking precise onshore wind remote sensing devices.
