| 測定原則: | 脈打ったレーザー凝集性のドップラー | サンプリングレート: | 1 Hz |
|---|---|---|---|
| サイズ（ハンドル含む）: | 554 × 430 × 581 mm3 | 測定の層: | 12か24 |
| 重さ: | ≤50kg | 風向精度: | 1° |
| 保護クラス: | IP68 | 風向の範囲: | 0〜360° |
| ハイライト: | IP68 laser wind speed meter,wind speed measurement tool 0-75 m/s,AC-powered wind analysis device |
||

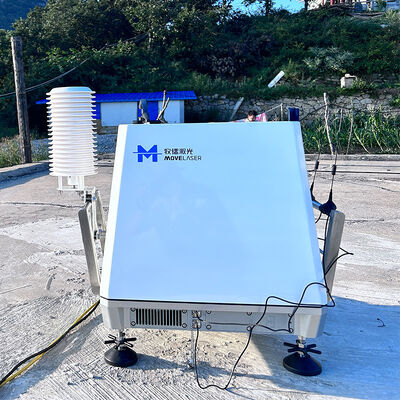

The Molas B300 utilizes the Doppler frequency shift principle and incorporates Doppler Beam Steering (DBS) scanning vector synthesis technology to accurately measure wind speed and direction. It is capable of performing these measurements at various altitudes, specifically from 30 meters up to 350 meters above the lidar unit.
This advanced series is composed of four fundamental components: a fiber laser lidar transmitter, a laser transceiver system, a high-speed data acquisition system, and sophisticated high-precision data processing software. Each of these modules is designed to maintain exceptional compatibility with the others, facilitating seamless system integration and ensuring the security of data throughout the process.
Thanks to the harmonious operation of these components, the Molas B300 series delivers performance that meets international standards, positioning it among the leaders in wind measurement technology.
The Molas B300 utilizes advanced non-contact measurement technology, ensuring easy and speedy operation combined with top-tier performance in the industry. It delivers precise wind speed measurements with an accuracy of 0.1 m/s and wind direction accuracy within 1°, making it a dependable tool for wind resource evaluation.
Featuring a broad measurement range extending from 20 to 350 meters, the Molas B300 supports either 12 or 24 customizable measurement layers to meet diverse wind measurement requirements. Its compact and lightweight design eliminates the need for land acquisition or civil engineering work, allowing flexible installation even in challenging terrains, which helps reduce both labor and expenses.
Built to withstand all weather conditions, the Molas B300 operates reliably in tough outdoor environments. It requires minimal maintenance that is both quick and safe, avoiding any production-related safety hazards. Furthermore, the device ensures secure data transmission, effectively preventing economic and regulatory risks linked to data breaches.
With capabilities for wireless configuration and data transfer, the Molas B300 is user-friendly and enables rapid deployment, greatly shortening project timelines and lowering costs. The Molas B300 is purposefully designed for accurate wind measurement, supporting efficient project implementation.
| Wind Speed Accuracy | 0.1 M/s |
| Wind Speed Range | 0~75 M/s |
| Power | ≤60W |
| Measurement Principle | Pulsed Laser Coherent Doppler |
| Humidity Range | 0% To 100% |
| Protection Class | IP68 |
| Wind Direction Range | 0~360° |
| Powered By | 24V ±5% DC, 100~230V AC |
| Weight | ≤50 Kg |
| Distance (Ordinary Type) | 30~350m |
The MOLAS B300, a cutting-edge laser wind speed measurement product from the renowned brand MOLAS, is designed to deliver precise and reliable wind data across a variety of application occasions and scenarios. Manufactured in China and available with a minimum order quantity of just one set, this advanced wind lidar system is packaged securely in a robust flight case, ensuring safe and convenient transportation. Its fast delivery time further enhances its appeal for urgent project deployments.
The MOLAS B300 stands out as a coherent wind lidar device, offering a high sampling rate of 1 Hz, which allows for real-time monitoring of wind conditions. With an impressive wind speed accuracy of 0.1 M/s and wind direction accuracy of 1°, this IEC-compliant wind lidar meets stringent international standards, making it ideal for applications requiring the highest levels of precision.
This third-party certified wind lidar is perfectly suited for a wide range of scenarios, including meteorological research, wind energy site assessment, and environmental monitoring. Its wind speed range of 0 to 75 m/s enables it to operate effectively in both calm and extreme weather conditions. Furthermore, the device’s IP68 protection class ensures excellent durability and resistance to harsh outdoor environments, allowing it to function reliably even in heavy rain or dust.
In wind energy projects, the MOLAS B300 is invaluable for optimizing turbine placement and maximizing energy yield by providing accurate wind speed and direction data over large areas. Meteorological stations benefit from its precision in tracking wind patterns, while aviation and marine industries rely on its dependable measurements for safety and operational efficiency.
Additionally, the MOLAS B300’s compact design and user-friendly interface make it suitable for temporary deployments or permanent installations. Whether used in remote locations or urban environments, this laser wind speed measurement product offers consistent, high-quality data essential for decision-making in weather forecasting, climate studies, and industrial applications.
In summary, the MOLAS B300 coherent wind lidar provides an exceptional solution for diverse wind measurement needs, combining advanced technology, international certification, and robust protection to ensure superior performance across multiple application occasions and scenarios.
